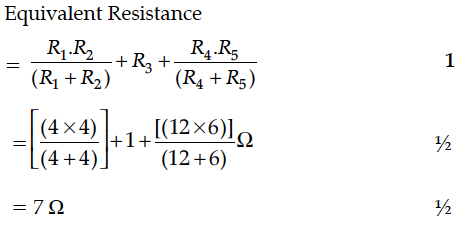

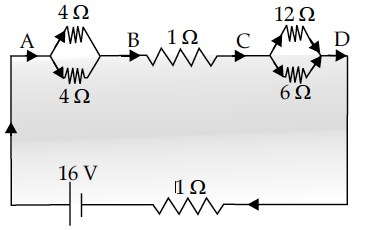

A network of resistors is connected to a 16 V battery with internal resistance of 1Ω as shown in the Fig. Compute the equivalent resistance of the network.
(a) 5 ohm
(b) 7 ohm
(c) 9 ohm
(d) 10 ohm
A 10 V battery of negligible internal resistance is connected across a 200 V battery and a resistance of 38Ω as shown in the figure. Find the value of the current in the circuit.
In the circuit shown in the figure, find the total resistance of the circuit and the current in the arm CD.
Two cells of emfs 1.5 V and 2.0 V having internal resistances 0.2Ω and 0.3Ω respectively are connected in parallel. Calculate the emf and internal resistance of the equivalent cell.
A 100 V battery is connected to the electric network as shown. If the power consumed in the 2 Ω resistor is 200 W, determine the power dissipated in the 5 Ω resistor.
Plot a graph showing the variation of current I versus resistance R, connected to a cell of emf E and internal resistance r.
What is relaxation time ? Derive an expression for resistivity of a wire in terms of number density of free electrons and relaxation time.
Two point charges q1 and q2 are located at and respectively in an external electric field E. Obtain the expression for the total work done in assembling this configuration.
Two metallic wires P₁ and P₂ of the same material and same length but different cross-sectional areas A₁ and A₂ are joined together and then connected to a source of emf. Find the ratio of the drift velocities of free electrons in the wires P₁ and P₂ if the wires are connected
(i) in series, and (ii) in parallel.
Find the expression for electric field intensity in an axial position due to electric dipole.
An electric dipole of length 4 cm, when placed with its axis making an angle of 60° with a uniform electric field, experiences a torque of Nm. Calculate the potential energy of the dipole, if it has charge ± 8 nC.
N spherical droplets, each of radius r, have been charged to have a potential V each. If all these droplets were to coalesce to form a single large drop, what would be the potential of this large drop ?
(It is given that the capacitance of a sphere of radius x equals
An electric dipole is placed in a uniform electric field with its dipole moment parallel to the field. Find
(i) the work done in turning the dipole till its dipole moment points in the direction opposite to .
(ii) the orientation of the dipole for which the torque acting on it becomes maximum.
A particle of mass 10⁻³ kg and charge 5 mC enters into a uniform electric field of 2×10⁵ NC⁻¹, moving with a velocity of 20 ms⁻¹ in a direction opposite to that of the field. Calculate the distance it would travel before coming to rest.
