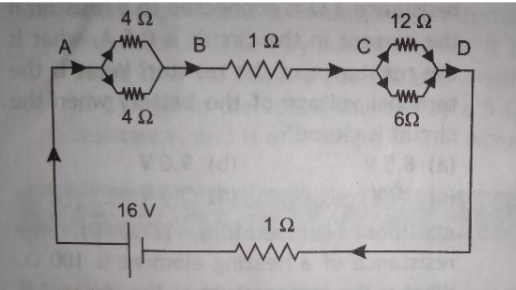

A network of resistors is connected to a 16 V battery with internal resistance of 1Ω as shown in the Fig. Compute the equivalent resistance of the network.
(a) 5 ohm
(b) 7 ohm
(c) 9 ohm
(d) 10 ohm
(a) 5 ohm
(b) 7 ohm
(c) 9 ohm
(d) 10 ohm
(b) 7 ohm
A network of resistors is connected to a 16 V battery with internal resistance of 1 Ω, as shown in the following figure. Compute the equivalent resistance of the network.
A 10 V battery of negligible internal resistance is connected across a 200 V battery and a resistance of 38Ω as shown in the figure. Find the value of the current in the circuit.
The V-i graph for a conductor at temperature T¹ and T² are as shown in the figure. (T² - T¹) is proportional to
(a) cos θ
(b) sin θ
(c) cot 2θ
(d) tan θ
Five resistances are combined according to the figure. The equivalent resistances between the points X and Y will be
(a) 10 Ω
(b) 22 Ω
(c) 20 Ω
(d) 50 Ω
In meter bridge, the balancing length from left end when standard resistance of 1 Ω is in right gap is found to be 20 cm. The value of unknown resistance is
(a) 0.25 Ω
(b) 0.4 Ω
(c) 0.5 Ω
(d) 4 Ω
A wire of resistance 0.5 Ωm⁻¹ is bent into a circle of radius 1m. The same wire is connected across a diameter AB as shown in the fig. The equivalent resistance is
(a) Π ohm
(b) Π (Π + 2) ohm
(c) Π/( Π + 4) ohm
(d) (Π + 1) ohm
A 100 V battery is connected to the electric network as shown. If the power consumed in the 2 Ω resistor is 200 W, determine the power dissipated in the 5 Ω resistor.
An alpha particle is moving perpendicularly to a uniform magnetic field of 3 Tesla with the velocity m/s. What is the work done by the particle?
(a) 30 × 10⁶ J
(b) 60 × 10⁶ J
(c) infinity
(d) zero
If a magnet is cut perpendicular its length into equal parts ,then the pole strength of each pole of the magnet
a) becomes double
b) remains same
c) becomes half
d) None of the above
A negatively charged oil drop is prevented from falling under gravity by applying a vertical electric field 100 V/m. If the mass of the drop is 1.6 x \(10^{-3}\)g, the number of electrons carried by the drop is (g=10m/\(s^2\))
(A)\(10^{18}\)
(B)\(10^{15}\)
(C)\(10^{12}\)
(D)\(10^9\)
A charge Q is placed at the origin. The electric potential due to this charge at a given point in space is V. The work done by an external force in bringing another charge q from infinity up to the point is
(a) v/q
(b) vq
(c) v+q
(d) v
The idea of secondary wavelets for the propagation of a wave was first given by
(a) Newton
(b) Huygens
(c) Maxwell
(d) Fresnel
Colours appears on a thin film of soap and a soap bubble is due to
(A) Interference
(B) Diffraction
(C) Polarisation
(D) Refraction
In Young’s double slit experiment, the fringe width is found to be 0.4 mm. If the whole apparatus is immersed in water of refractive index 4/3 without disturbing the geometrical arrangement, the new fringe width will be :
i. 0.3 mm
ii. 0.4 mm
iii. 0.53 mm
iv. 0.75 mm
