Obtain the expression for the potential due to an electric dipole of dipole moment p at a point ‘d’ on the axial line.

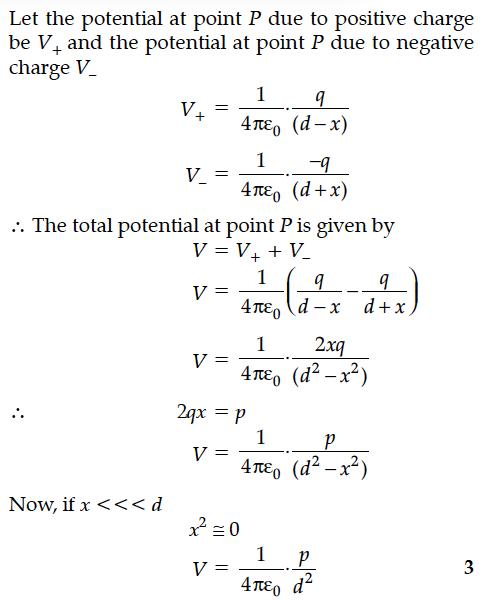

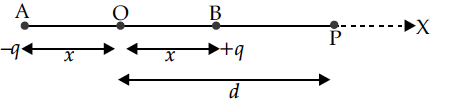

Consider an electric dipole of charges +q and – q separated by 2x distance being placed in free space. Let P be the point at which the electric field is to be determined due to the electric dipole.
(i) Derive the expression for the electric potential due to an electric dipole at a point on its axial line.
(ii) Depict the equipotential surface due to electric dipole.
The electric potential due to point charge 3 nC at distance of 9 cm is
(a) 270 v
(b) 3 v
(c) 300 v
(d) 30 v
Choose the SI unit of electric potential energy :
(a) Joule
(b) Coulomb
(c) Newton per coulomb
(d) Erg
(i) Derive the expression for the electric potential due to an electric dipole at a point on its axial line.
(ii) Depict the equipotential surface due to electric dipole.
Obtain the expression for the potential due to an electric dipole of dipole moment p at a point ‘d’ on the axial line.
Two cells of emfs E₁ & E₂ and internal resistances r₁ & r₂ respectively are connected in parallel. Obtain expressions for the equivalent.
(i) resistance and
(ii) emf of the combination
(i) An electric dipole is kept first to the left and then to the right of a negatively charged infinite plane sheet having a uniform surface charge density. The arrows p₁ and p₂ show the directions of its electric dipole moments in the two cases.
Derive the expression for the average power dissipated in a series LCR circuit for an ac source of a voltage, V = sin ωt , carrying a current,i = sin (ωt + Φ)
Hence define the term “Wattless current”. State under what condition it can be realized in a circuit.
A sinusoidal voltage of peak value 10 V is applied to a series LCR circuit in which resistance,capacitance and inductance have values of 10 Ω,1 µF and 1 H respectively. Find
(i) the peak voltage across the inductor at resonance
(ii) quality factor of the circuit.
A 200 mH (pure) inductor and a 5 µF (pure) capacitor are connected one by one, across a sinusoidal ac voltage source of V = [70.7sin (1000t)] voltage. Obtain the expression for the current in each case.
