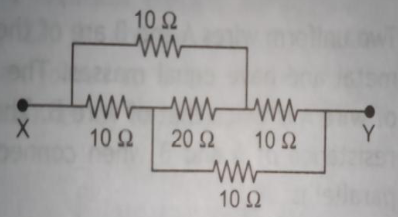

Five resistances are combined according to the figure. The equivalent resistances between the points X and Y will be
(a) 10 Ω
(b) 22 Ω
(c) 20 Ω
(d) 50 Ω
(a) 10 Ω
(b) 22 Ω
(c) 20 Ω
(d) 50 Ω
(a) 10 Ω
In the circuit shown in the figure, find the total resistance of the circuit and the current in the arm CD.
The V-i graph for a conductor at temperature T¹ and T² are as shown in the figure. (T² - T¹) is proportional to
(a) cos θ
(b) sin θ
(c) cot 2θ
(d) tan θ
In the two electric circuits shown in the figure, determine the readings of ideal ammeter (A) and the ideal voltmeter (V).
A torch bulb rated as 4.5 W, 1.5 V is connected as shown in the figure. The emf of the cell needed to make the bulb glow at full intensity is
(a) 4.5 V
(b) 1.5 V
(c) 2.67 V
(d) 13.5 V
Plot a graph showing the variation of current I versus resistance R, connected to a cell of emf E and internal resistance r.
Give an example of a material each for which temperature coefficient of resistivity is:
(i) positive, (ii) negative.
How does the random motion of free electrons in a conductor get affected when a potential difference is applied across its ends ?
An air capacitor is charged with an amount of charge q and dipped into an oil tank. If the oil is pumped out, the electric field between the plates of capacitor will
(a) increase
(b) decrease
(c) remain the same
(d) becomes zero
In series R-L-C circuit, quality factor can be improved by
(a) decreasing L
(b) increasing C
(c) decreasing R
(d) decreasing R & L
In an interference pattern produced by two identical slits, the intensity at the site of maxima is I. When one of the slit is closed, the intensity at the same spot is I0. What is the relation between I and \(I_0\)
(a) I = 2 \(I_0\)
(b) I = 4 \(I_0\)
(c) I = 16 \(I_0\)
(d) I = \(I_0\)
The phenomenon of diffraction can be treated as interference phenomenon if the number of coherent sources is:
(A) one
(B) two
(C) zero
(D) infinity
When a body charges by conduction, its mass
(A) Remains same
(B) Increases
(C)Decreases
(D)Increase or decrease
A network of resistors is connected to a 16 V battery with internal resistance of 1Ω as shown in the Fig. Compute the equivalent resistance of the network.
(a) 5 ohm
(b) 7 ohm
(c) 9 ohm
(d) 10 ohm
Length of a hollow tube is 5 m, its outer diameter is 10 cm and thickness of its wall is 5 mm. If resistivity of the material of the tube is 1.7 x 10⁻⁸ Ωm, then the resistance of the tube will be
(a) 5.6 × 10⁻⁵ Ω
(b) 2 × 10⁻⁵ Ω
(c) 4 × 10⁻⁵ Ω
(d) None of these
