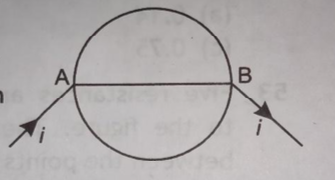

A wire of resistance 0.5 Ωm⁻¹ is bent into a circle of radius 1m. The same wire is connected across a diameter AB as shown in the fig. The equivalent resistance is
(a) Π ohm
(b) Π (Π + 2) ohm
(c) Π/( Π + 4) ohm
(d) (Π + 1) ohm
(a) Π ohm
(b) Π (Π + 2) ohm
(c) Π/( Π + 4) ohm
(d) (Π + 1) ohm
(c) Π/( Π + 4) ohm
A network of resistors is connected to a 16 V battery with internal resistance of 1Ω as shown in the Fig. Compute the equivalent resistance of the network.
(a) 5 ohm
(b) 7 ohm
(c) 9 ohm
(d) 10 ohm
Five resistances are combined according to the figure. The equivalent resistances between the points X and Y will be
(a) 10 Ω
(b) 22 Ω
(c) 20 Ω
(d) 50 Ω
A new flashlight cell of emf 1.5 volts gives a current of 15 amps, when connected directly to an ammeter of resistance 0.04 Ω. The internal resistance of cell is
(a) 0.04 Ω
(b) 0.06 Ω
(c) 0.10 Ω
(d) 10 Ω
A torch bulb rated as 4.5 W, 1.5 V is connected as shown in the figure. The emf of the cell needed to make the bulb glow at full intensity is
(a) 4.5 V
(b) 1.5 V
(c) 2.67 V
(d) 13.5 V
In meter bridge, the balancing length from left end when standard resistance of 1 Ω is in right gap is found to be 20 cm. The value of unknown resistance is
(a) 0.25 Ω
(b) 0.4 Ω
(c) 0.5 Ω
(d) 4 Ω
The V-i graph for a conductor at temperature T¹ and T² are as shown in the figure. (T² - T¹) is proportional to
(a) cos θ
(b) sin θ
(c) cot 2θ
(d) tan θ
Graph showing the variation of current versus voltage for a material GaAs is shown in the figure, identify the region of :
A transformer having efficiency of 90% is working on 200 V and 3 kW power supply. If the current in the secondary coil is 6 A, the voltage across the secondary coil and the current in the primary coil respectively are
(a) 300 V, 15 A
(b) 450 V, 15 A
(c) 450 V, 13.5 A
(d) 600 V, 5 A
The magnetic flux linked with a coil is given by the equation Ø = 2t² + 2t + 4 weber. The magnitude of induced emf at time t=2s will be
(a) 16 V
(b) 10V
(c) 12V
(d) 8V
A charge Q is enclosed by a Gaussian spherical surface of radius R. If the radius is doubled, then the outward electric flux will
(A) Increase four times
(B) be reduced to half
(C) remain the same
(D) Be doubled
The coil of a moving coil galvanometer is wound over a metal frame in order to-
(a) reduce hysteresis
(b) increase sensitivity
(c) increase moment of inertia
(d) provide electromagnetic damping.
In highly inductive load circuit, it is more dangerous when
(a) we close the switch
(b) open the switch
(c) increasing the resistance
(d) decreasing the resistance
A charge q is placed at one corner of the cube. The electric flux passing through any one of its face is
The figure below shows a 2.0 V potentiometer used for the determination of internal resistance of a 1.5 V cell. The balance point of the cell in open circuit is 76.3 cm. When a resistor of 9.5 Ω is used in the external circuit of the cell, the balance point shifts to 64.8 cm length of the potentiometer wire. Determine the internal resistance of the cell.
(a) 1.7 Ω
(b) 2.7 Ω
(c) 3.7 Ω
(d) 1.1 Ω
