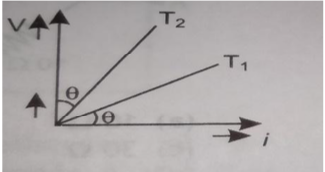

The V-i graph for a conductor at temperature T¹ and T² are as shown in the figure. (T² - T¹) is proportional to
(a) cos θ
(b) sin θ
(c) cot 2θ
(d) tan θ
(a) cos θ
(b) sin θ
(c) cot 2θ
(d) tan θ
(c) cot 2θ
Five resistances are combined according to the figure. The equivalent resistances between the points X and Y will be
(a) 10 Ω
(b) 22 Ω
(c) 20 Ω
(d) 50 Ω
In the two electric circuits shown in the figure, determine the readings of ideal ammeter (A) and the ideal voltmeter (V).
Draw a graph to show the variation of resistance of a metal wire as a function of its diameter keeping its length and material constant.
In the circuit shown in the figure, find the total resistance of the circuit and the current in the arm CD.
Give an example of a material each for which temperature coefficient of resistivity is:
(i) positive, (ii) negative.
How does the random motion of free electrons in a conductor get affected when a potential difference is applied across its ends ?
High voltage transmission line is preferred as
(a) Its appliances are less costly
(b) Thin power cables are required
(c) Idle current very low
(d) Power loss is very less
What happens to the interference pattern, the two slits S1 and S2 in Young’s double slit experiment are illuminated by two independent but identical sources?
a. The intensity of the bright fringes doubled
b. The intensity of the bright fringes becomes four times
c. Two sets of interference fringes overlap
d. No interference pattern is observed.
A wire in the form of a circular loop, of one turn carrying a current, produces magnetic induction B at the centre. If the same wire is looped into a coil of two turns and carries the same current, the new value of magnetic induction at the centre is-
a) B
b) 4B
c) 2B
d) 8B.
When a body charges by conduction, its mass
(A) Remains same
(B) Increases
(C)Decreases
(D)Increase or decrease
Two charges of 2uC and 5uC are placed 2.5 cm apart. The ratio of Coulomb's force experienced by them is
The electrostatic potential energy between proton and electron separated by a distance of 1 Å is
(a) 13.6eV
(b) 27.2eV
(c) -14.4eV
(d) 1.44eV
