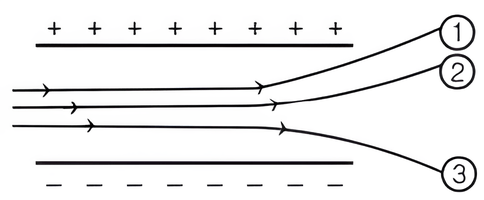

The given figure shows tracks of three charged particles in a uniform electrostatic field. Which of them is probably an α-particle?
(A) 1
(B) 2
(C) 3
(D) None of the above
(A) 1
(B) 2
(C) 3
(D) None of the above
(C) 3
In the process of charging, the mass of the negatively charged body-
(A) Increases
(B) Decreases
(C) Remains Constant
(D) None of the above
Electric flux emanating through a surface element placed in an electric field is
(A) 10 units
(B) 20 units
(C) 4 units
(D) 16 units
Find the expression for electric field intensity in an axial position due to electric dipole.
A charge q is placed at one corner of the cube. The electric flux passing through any one of its face is
When 2 × \(10^{11}\) electrons are removed from a neutral metal sphere, the charge on the sphere becomes:
(A) -16 nC
(B) 16 nC
(C) -32 nC
(D) 32nC
the magnitude of a charge q at the center of two equal and like charges Q so that the three charges are in equilibrium
A. Q
B. Q/2
C. Q/4
D. –Q/4
Derive an expression for electric field of a dipole at a point on the equatorial plane of the dipole. How does the field vary at large distances?
The parameter of light wave which remain same after refraction
(A) speed
(B) frequency
(C) wavelength
(D) none of these
The idea of secondary wavelets for the propagation of a wave was first given by
(a) Newton
(b) Huygens
(c) Maxwell
(d) Fresnel
A coil of wire of certain radius has 500 turns and self inductance of 75 mH. The self inductance of a second similar coil of 600 turns will be
(a) 100 mH
(b) 150mH
(c) 108 mH
(d) 105mH
The coil of a moving coil galvanometer is wound over a metal frame in order to-
(a) reduce hysteresis
(b) increase sensitivity
(c) increase moment of inertia
(d) provide electromagnetic damping.
The electric potential of earth is taken as:
(a) zero
(b) infinity
(c) unity
(d) None of these
In a circuit with a coil of resistance 3Ω, the magnetic flux changes from 1.0 Wb to 10.0 Wb in 0.3 s. The charge that flows in the coil during this time is
(a) 2.0 C
(b) 3.0 C
(c) 4.0 C
(d) 1.0 C
A 40 mF capacitor is connected to a 200 V, 50 Hz ac supply. The r.m.s value of the current in the circuit is, nearly
(a) 1.7 A
(b) 2.05 A
(c) 2.5 A
(d) 25.1 A
