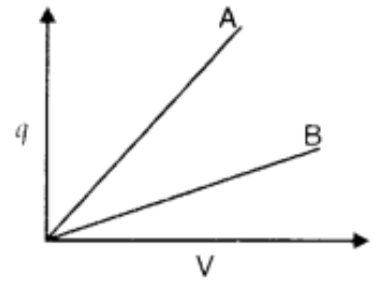

Graph represents q verses V for two capacitors having same plate separation but different plate area . Which is the correct option

1. Capacitance of capacitor B is greater than capacitance of A
2. Plate area of A is greater than plate area of B
3. Capacitance of A is equal to Capacitance of B
4. None of the above

1. Capacitance of capacitor B is greater than capacitance of A
2. Plate area of A is greater than plate area of B
3. Capacitance of A is equal to Capacitance of B
4. None of the above
2. Plate area of A is greater than plate area of B
A capacitor is connected across a battery and the plate separation of capacitor is increased without removing the battery, then:
(a) capacitance will increase
(b) charge stored will increase
(c) energy stored will decrease
(d) potential difference will increase
A parallel plate capacitor is made by stacking n equally spaced plates connected alternately. If the capacitance between any two plates is C, then the resultant capacitance is
(a) C
(b) nC
(c) (n-1)C
(d) (n+1)C
Two copper spheres of the same radius, one solid and the other hollow, are charged to the same potential. Which will have more charge?
(a) Solid sphere
(b) Hollow sphere
(c) Both will have an equal charge
(d) None of these
Three capacitors of 6μf each are connected across a triangle. What is the resultant capacitance across any side of the triangle.
1. 6 μf
2. 2 μf
3. 4 μf
4. 12μf
For any charge configuration equipotential surface through a point is normal to the electric field.
1. Since W=Fscosθ is zero so field is normal to the surface
2. As W≠0
3. Work done can be Zero if Field is parallel to the field
4. None of these
A parallel plate air capacitor has a capacitance 18μF. If the distance between the plates is tripled and a dielectric medium is introduced, the capacitance becomes 72μF. The dielectric constant of the medium is
(a) 4
(b) 9
(c) 12
(d) 2
Four charges 2C,-3C,-4C and 5C respectively are placed at the four corners of a square .Which of the following statements is true for the point of intersection of the diagonals.
1. E=0,V=0
2. E=0 V≠0
3. E≠0 V=0
4. E≠0 V≠0
Which among the following isn’t a suitable phenomenon to establish that light is wave motion?
a) Interference.
b) Diffraction.
c) Reflection.
d) Polarization.
For any charge configuration equipotential surface through a point is normal to the electric field.
1. Since W=Fscosθ is zero so field is normal to the surface
2. As W≠0
3. Work done can be Zero if Field is parallel to the field
4. None of these
A parrot comes and sits on a bare high-power line. It will
A. experience a mild shock
B. experiences a strong shock
C. get killed instantaneously
D. not be affected at all
When tiny circular obstacle is placed in the path of light from a distance source , a bright spot is seen at the centre of the obstacle.
I. It happens due to
II. Polarization of light waves
III. Diffraction of light waves
IV. Interference of light waves
V. Scattering of light waves
A coil of wire of certain radius has 500 turns and self inductance of 75 mH. The self inductance of a second similar coil of 600 turns will be
(a) 100 mH
(b) 150mH
(c) 108 mH
(d) 105mH
The amount of work required to increase the distance between -6µC and 4µC from 6 cm to 18 cm will be :
(a) 1.8 J
(b) 2.4 J
(c) 1.8 µJ
(d) 2.4 µJ
Which of the following statements indicates that light waves are transverse?
(a) Light waves can be polarised
(b) Light waves can show interference
(c) Light waves undergo diffraction
(d) They travel in the vacuum
